Liberta Prima V18

3D software for roof & timber construction - for all carpenters, roofers and construction planners!

Special purchase price only for a short time!

Order Liberta Prima! 75 net

order

Liberta Prima

Liberta Prima contains all the functions of the Liberta program.
You can upgrade whenever you want to the LigniKon software (for beginners or more advanced users) or VisKon (for professionals and wood experts).

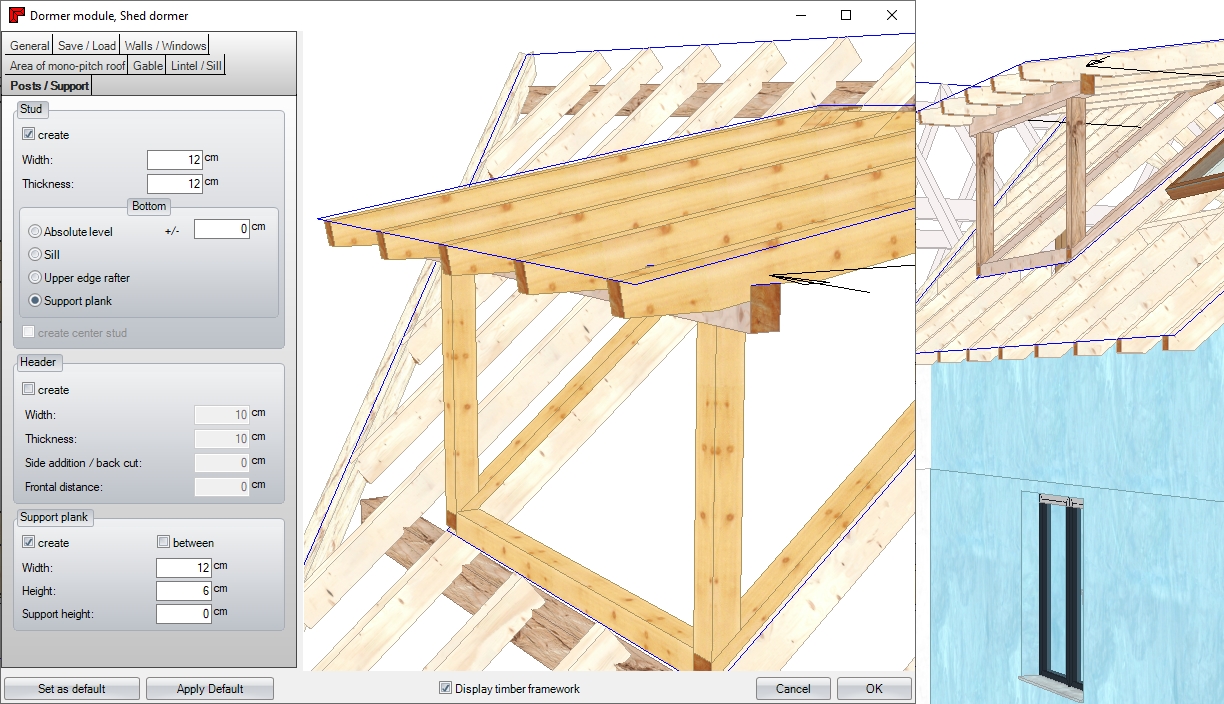

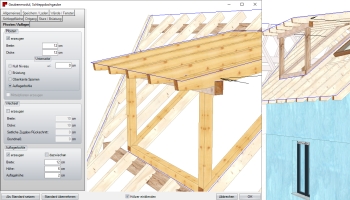

Dormer tool

Dormer tool

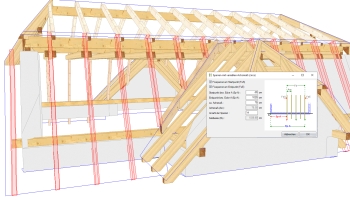

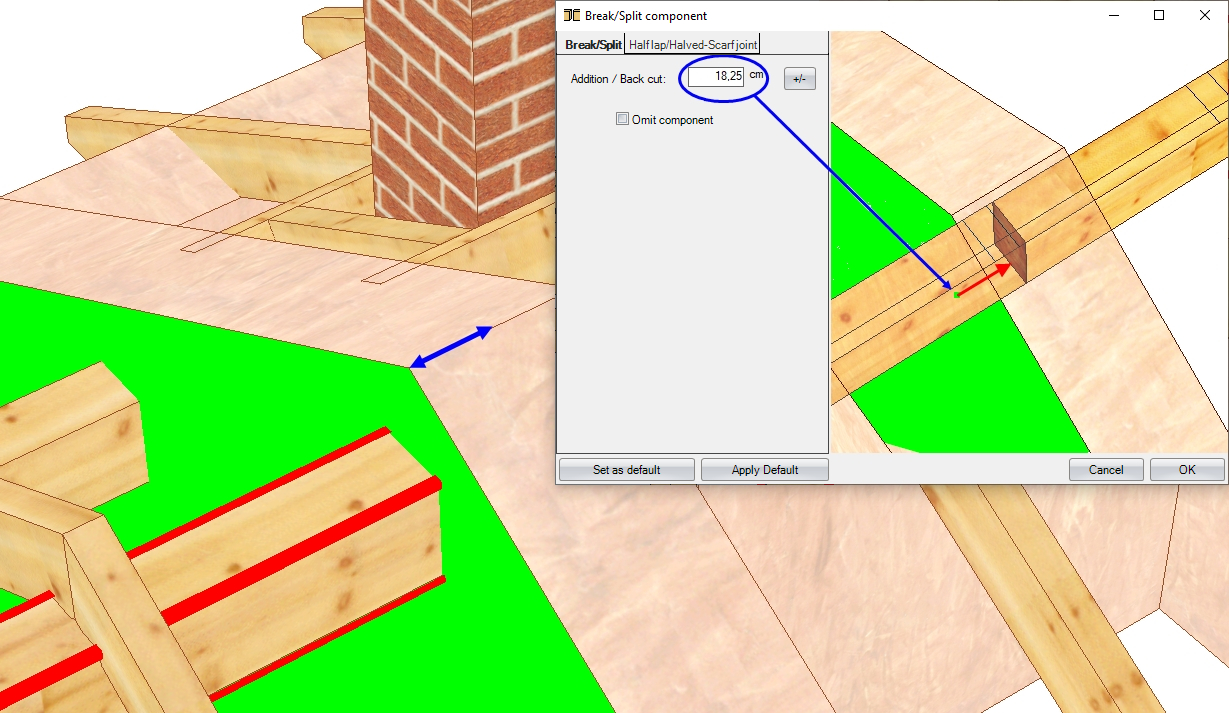

Break/Split component (e.g. for load distribution)

Break/Split component (e.g. for load distribution)

Automatic cut adjustment of the walls under the roof

Automatic cut adjustment of the walls under the roof

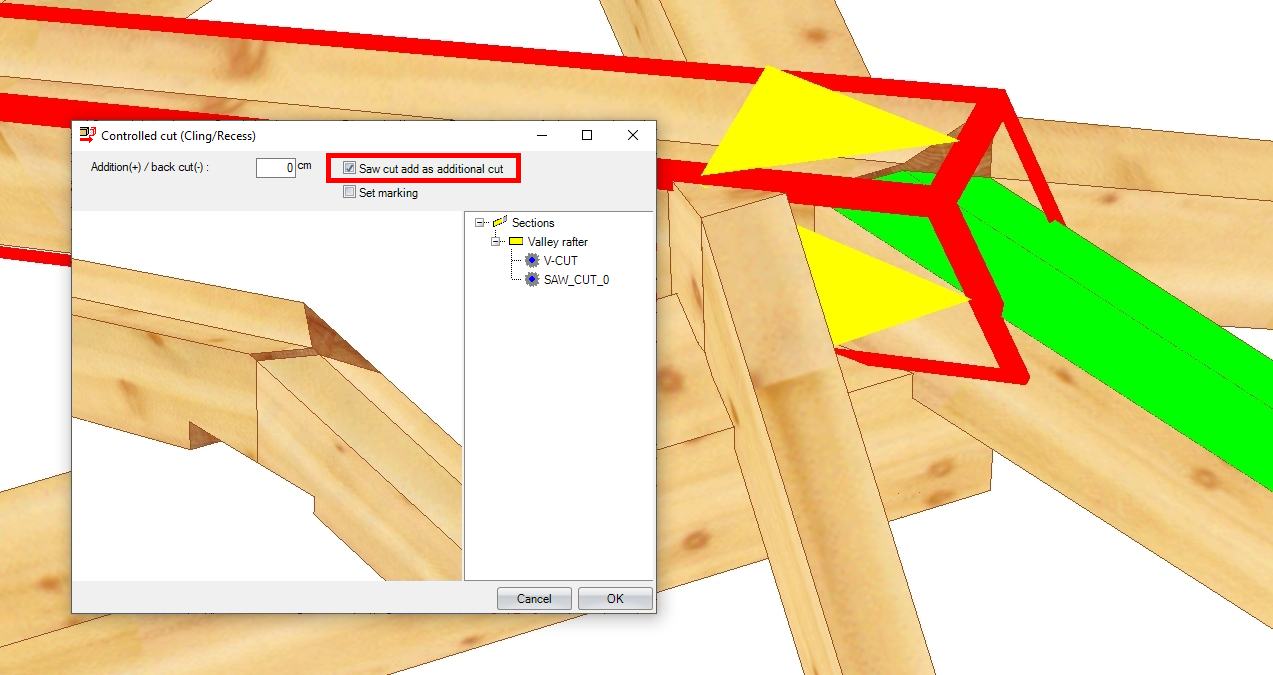

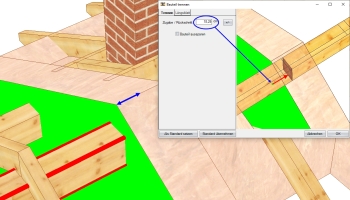

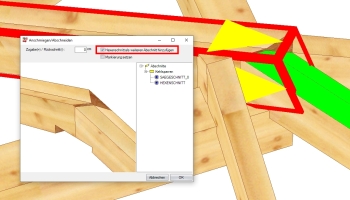

Controlled cut (cling/recess)

Controlled cut (cling/recess)

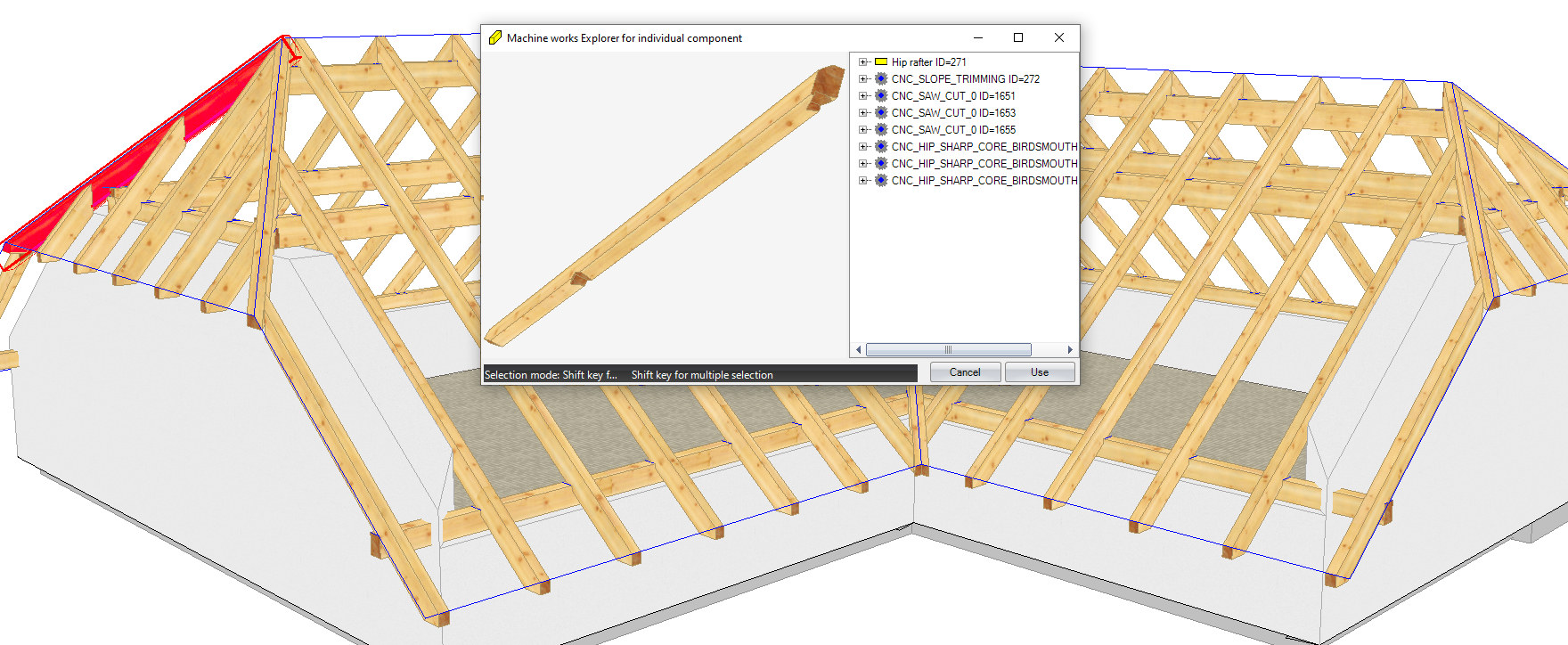

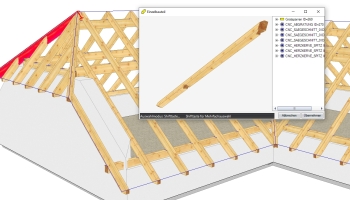

3D inspector for machining of individual components

3D inspector for machining of individual components

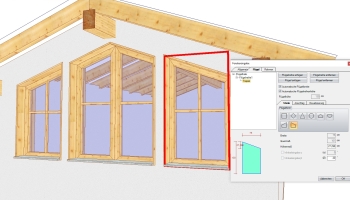

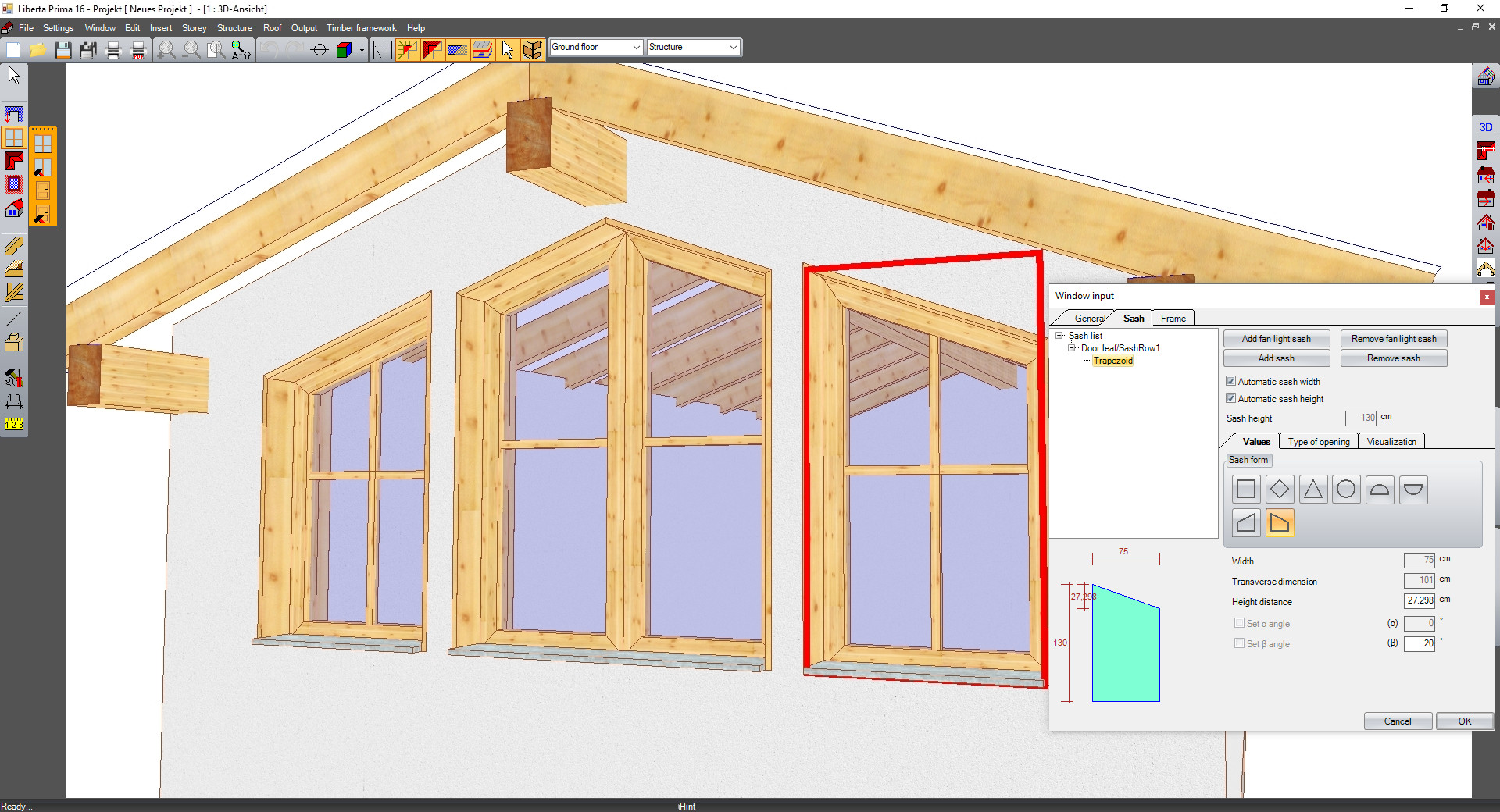

Windows and Doors

Windows and Doors

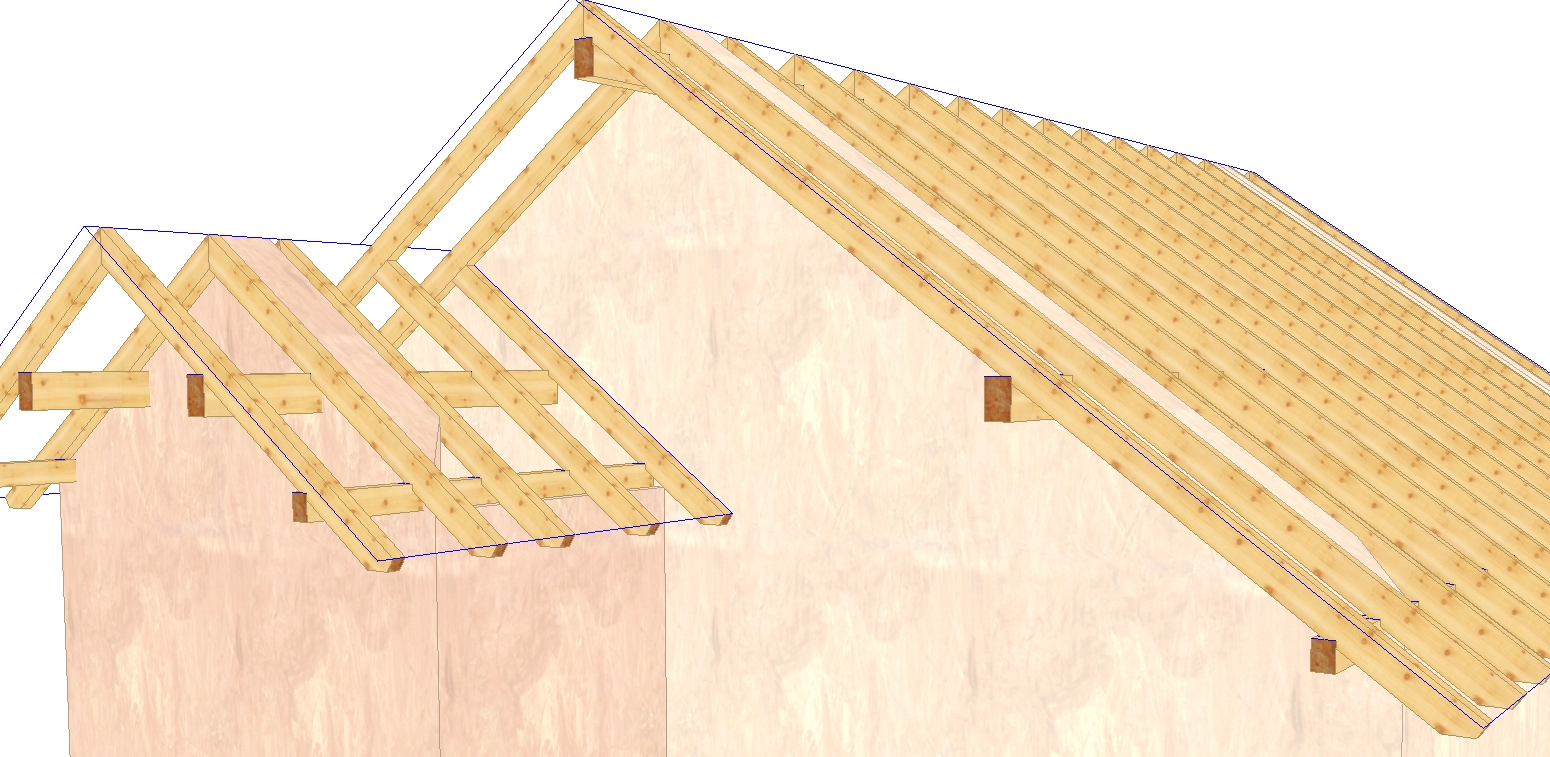

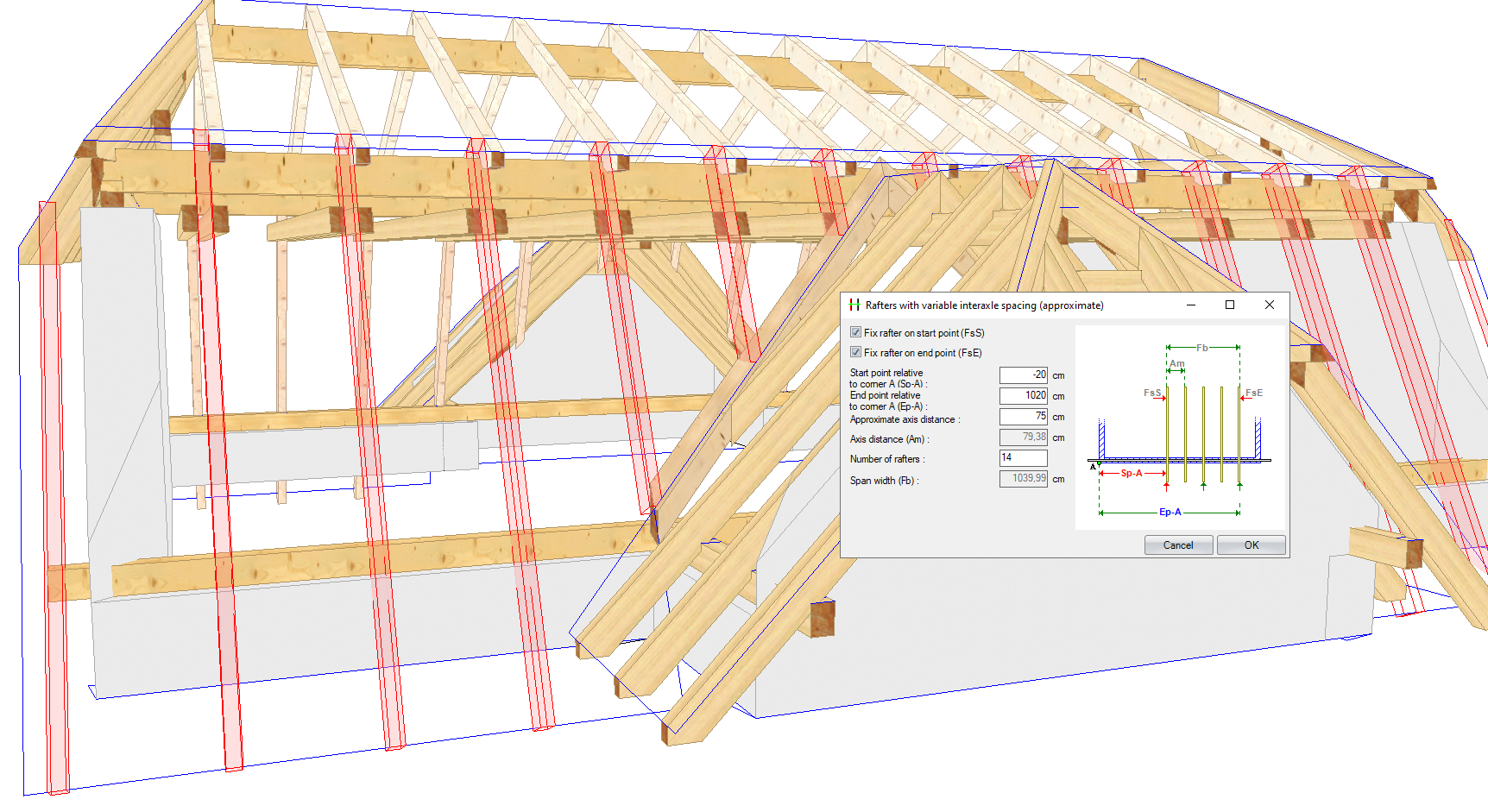

Free rafters placement

Free rafters placement

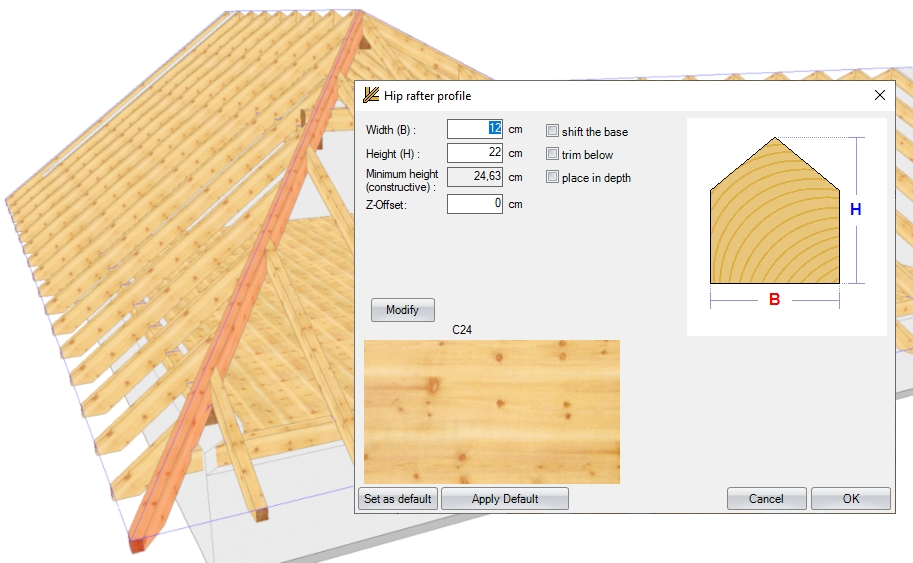

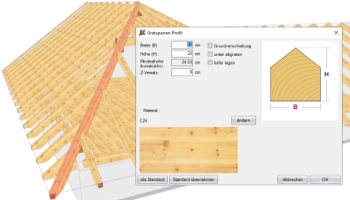

Free rafters placement Automatic Hip and Valley Rafters

Free rafters placement Automatic Hip and Valley Rafters

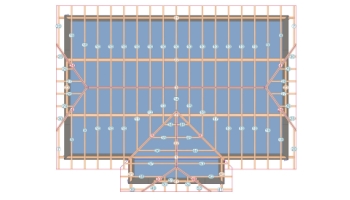

2D Views

2D Views

  • Design your roof in few minutes!

  • Windows and Doors input

  • Free rafters input

  • Hip and Valley rafter tool

  • Automatic cut of timber framework to accommodate dormers, skylights and chimneys

  • Timber list computation including the components length/crosse sections to share with the sawmill

  • Display of existing CNC numbers in 2D and 3D

  • Automatic adjustment of the walls to the roof

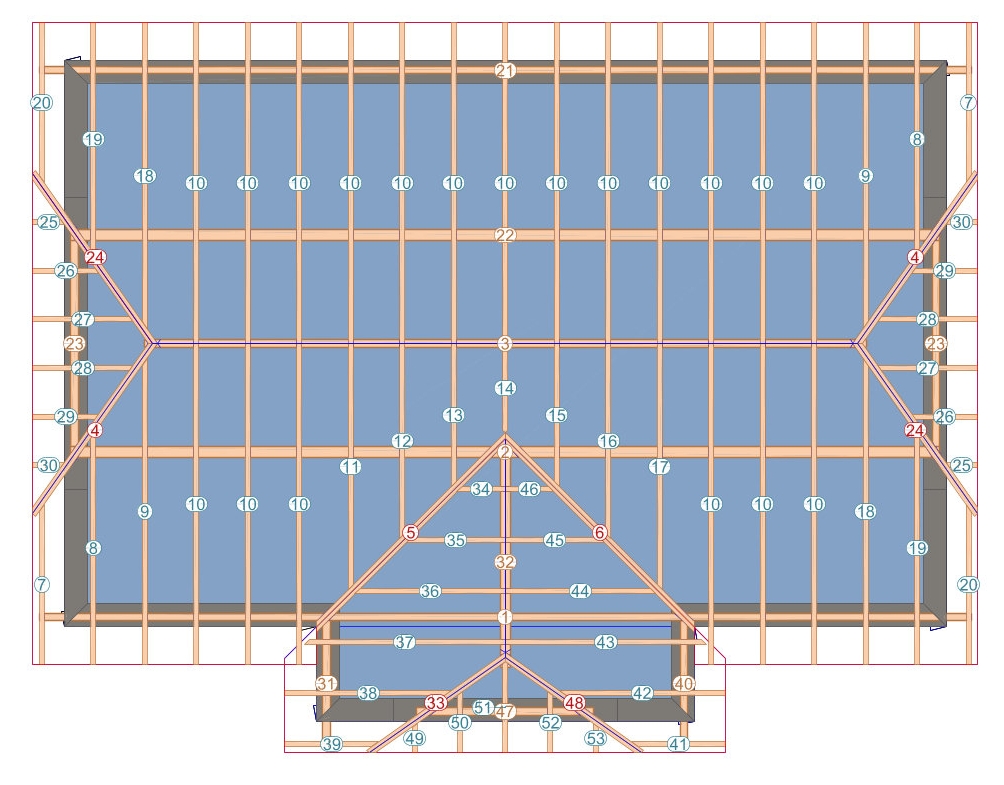

  • Search for components by CNC number

  • Selection of components by material and zone

  • New windows and doors geometries

  • New floorplan types on the Building Wizard for creating conservatories or winter gardens

  • Catalogue of your favourite 3D roof profiles

  • Expandable roof tile catalogue

  • Expandable catalogue of roof superstructures

  • One-click for generating collar beams/ties on the rafters

  • Additional functions for measuring 3D / 2D surfaces

  • Import/Export modules for ArCon and Allpan

  • 2D and 3D Export to DXF/DWG

Click here to check out the flyer


Liberta Prima

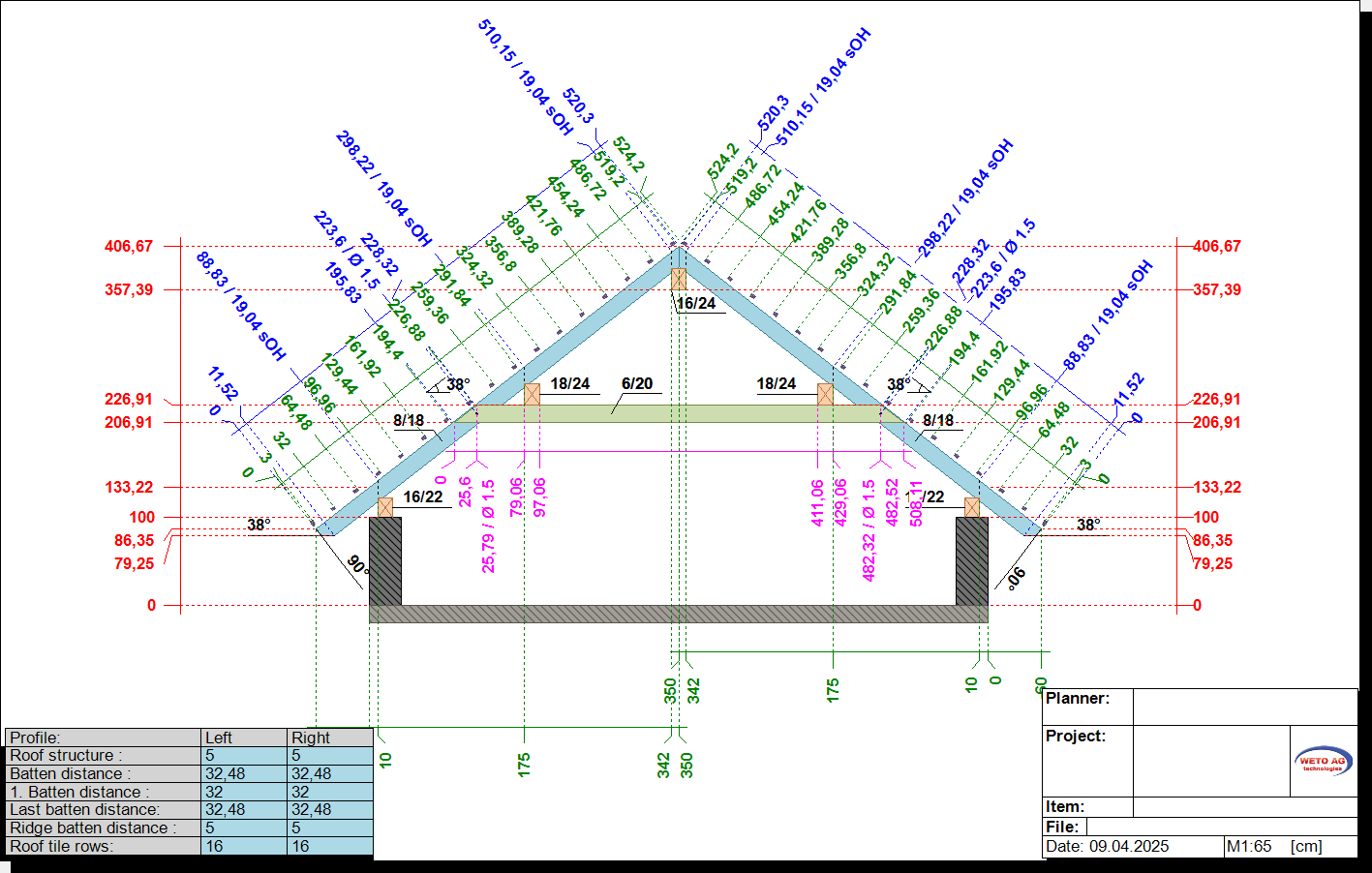

Disegni tecnici automatici dei prospetti dei profili del tetto

"Automatic Technical Drawing of roof profile elevation"
Simply select the roof surface by a click using the button Technical drawing of roof profile elevation You’ll obtain the expected elevation view drawing with all necessary dimensions!

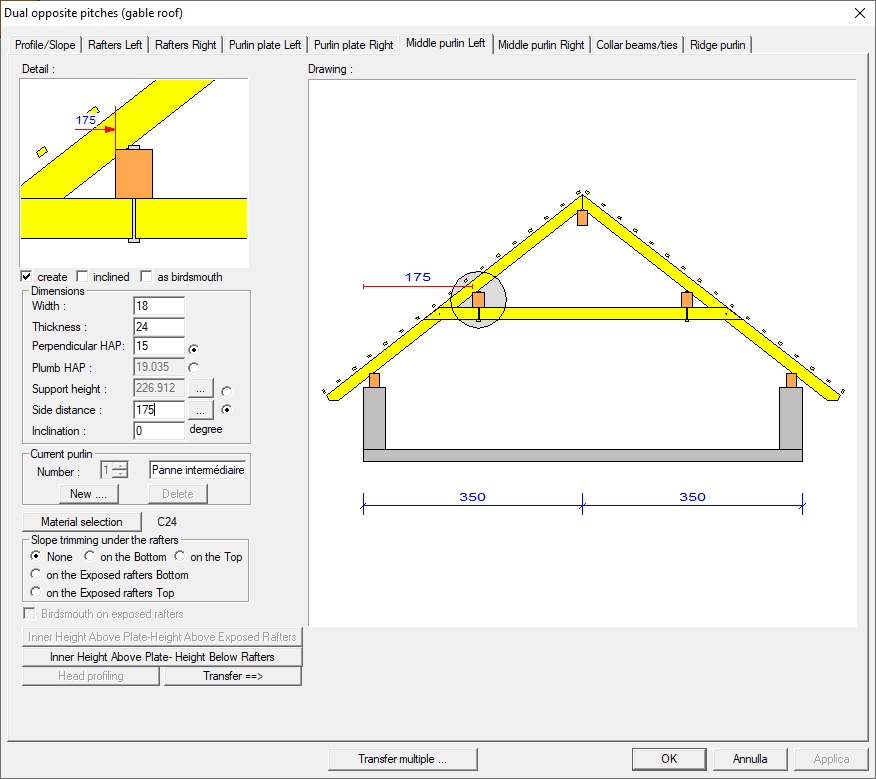

Modifica profilo

"Edit profile"
All profile data, such as Roof pitch, hip heights from flooring, beam cross-sections details (distances, size, joints), etc. can be changed by a roof click using the Edit profile button. On the editor is possible to control main timber construction: rafters, hip/valley rafters, base/inferior/middle/ridge purlins, collar ties/beams, etc.

Inserimento parametrico

"Parametric input"

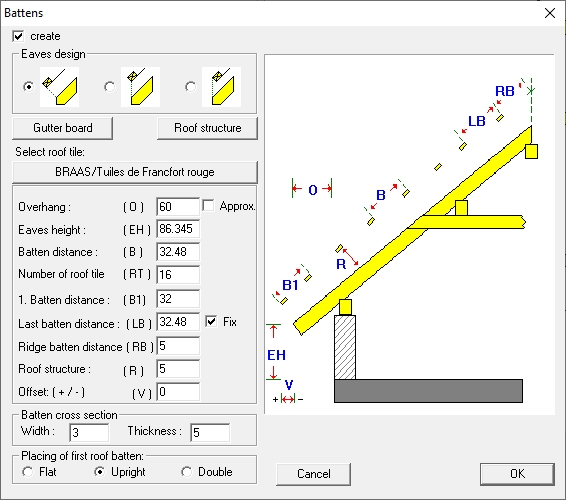

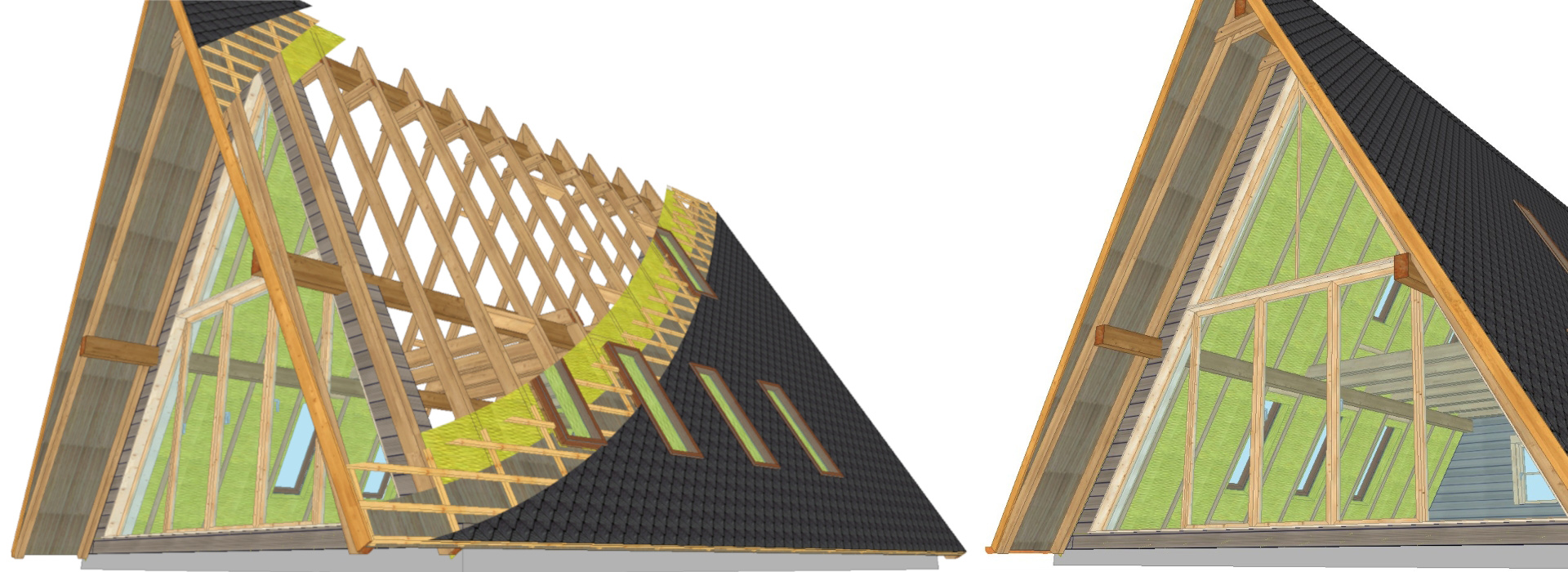

The roof editor allows to easily manage the light wooden construction input: battens/counter-battens and boards.

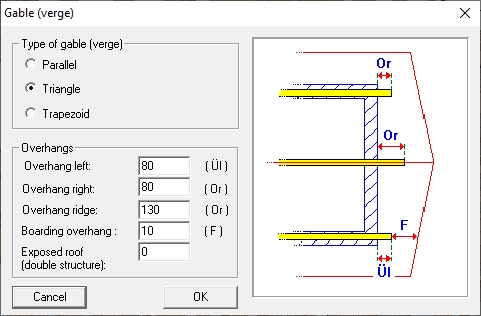

Tipi di Frontoni o Timpani

"Gable types"
With this option it is possible to define the gable of the roof according to different geometries. Simply choose the preferred gable geometry (triangular, trapezoidal or the classic parallel) and enter the required measurements.

Draw you 3D roof in 7 steps only with the Roof Wizard:

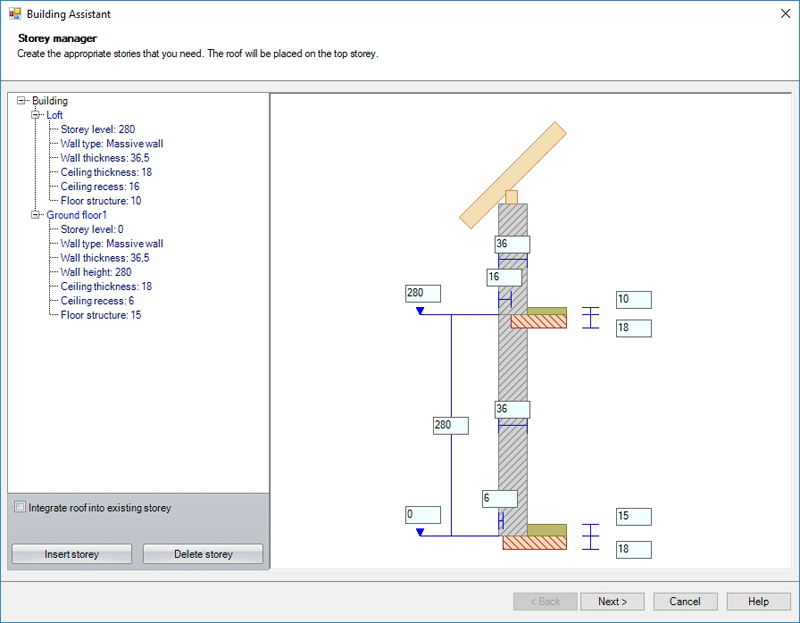

1. Define your storeys...

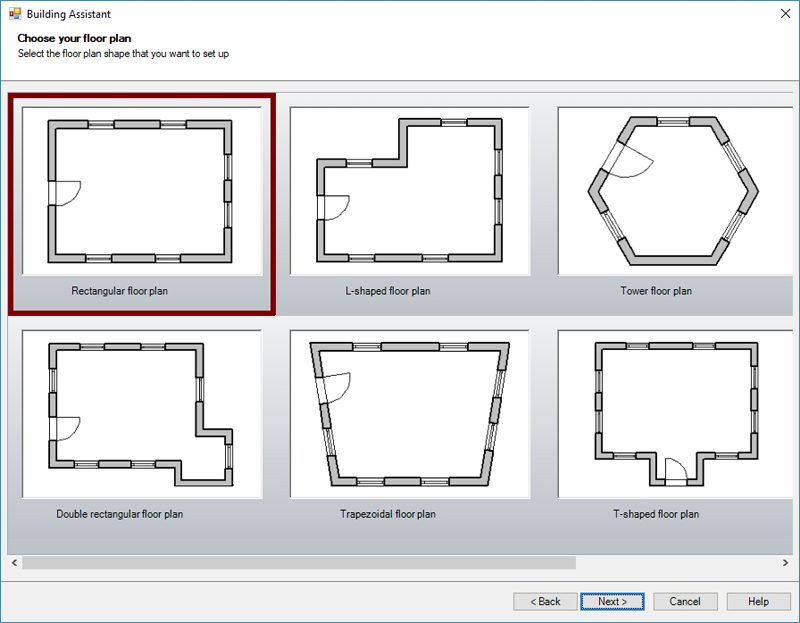

2. ...choose your floor plan

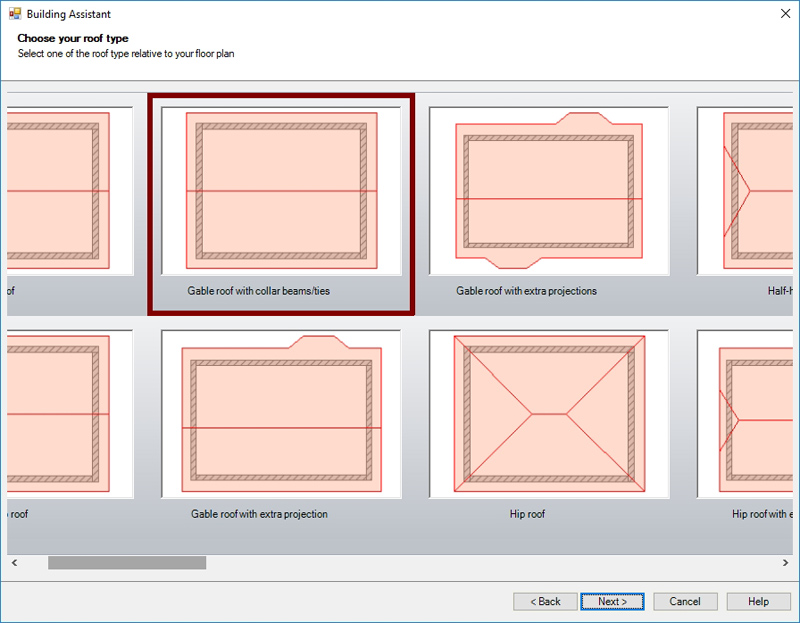

3. ...roof type and shape

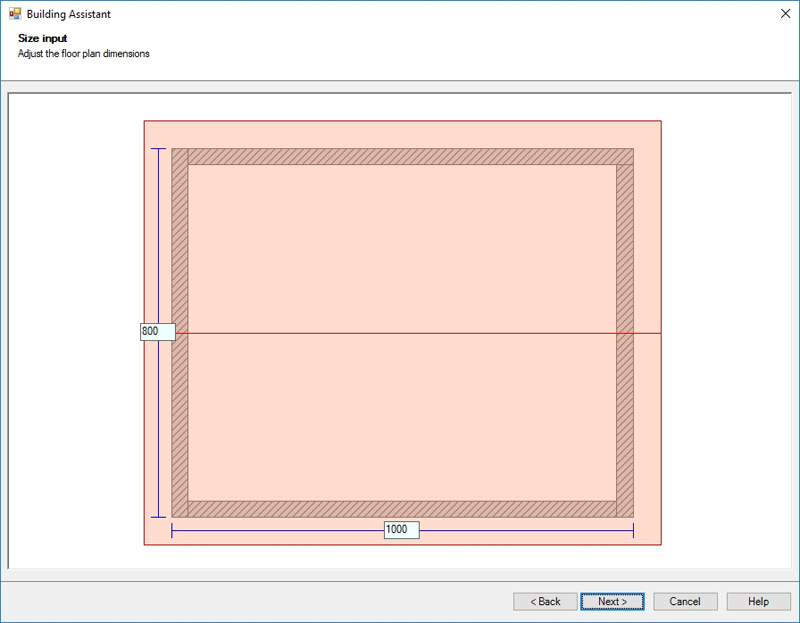

4. ...set the size

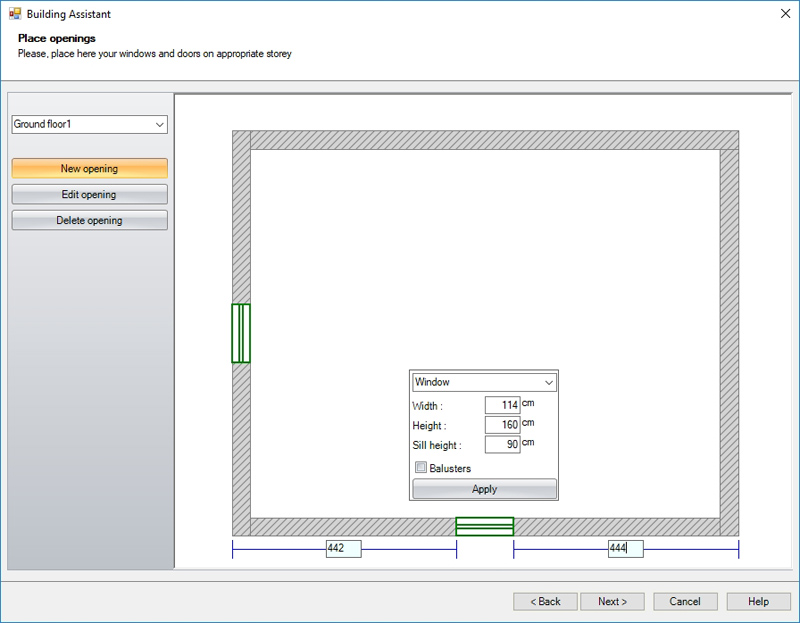

5. ...place windows and doors

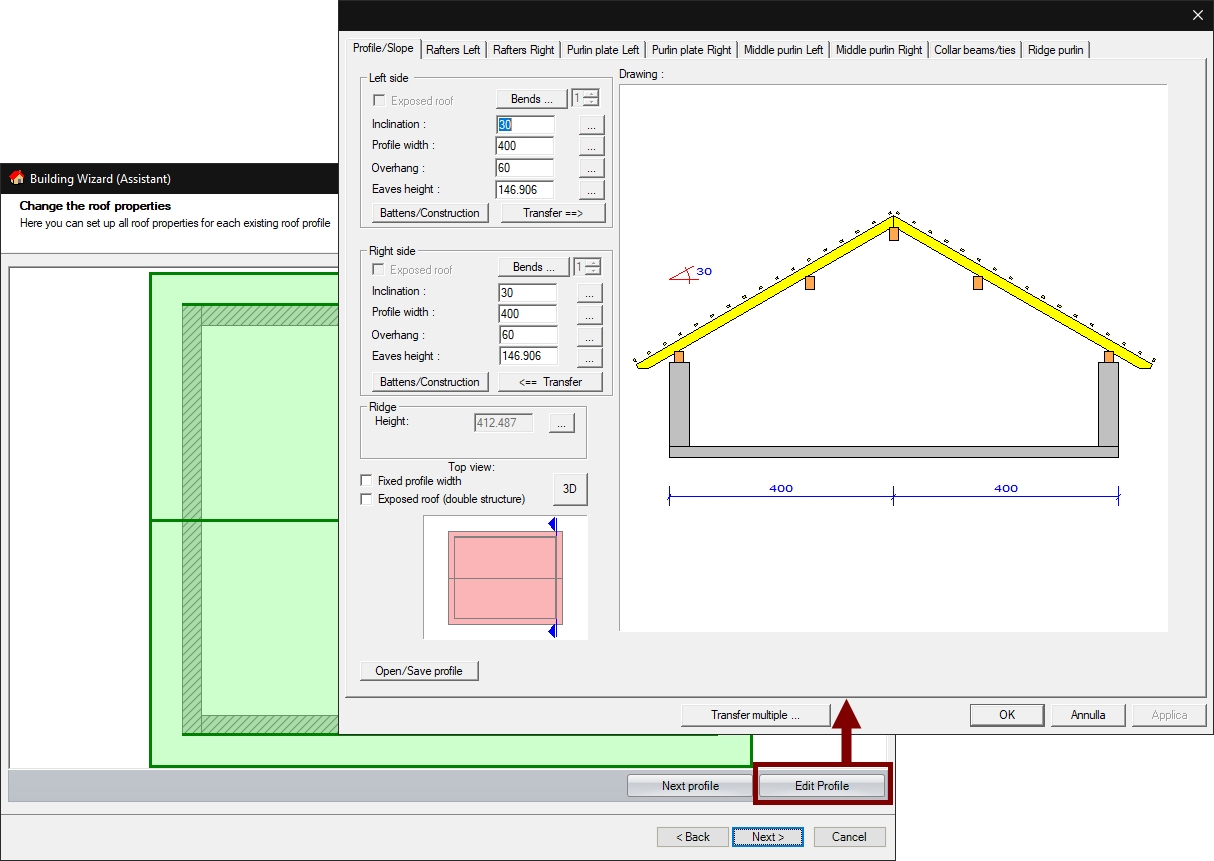

6. ...set roof properties

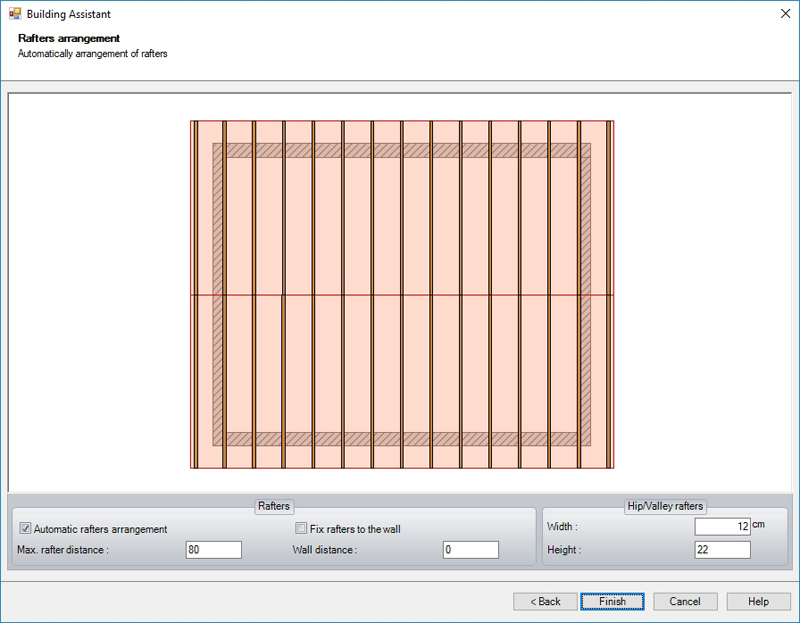

7. and rafter distance

Special purchase price only for a short time!

Order Liberta Prima! 75 net

order

system requirements: Windows 10/11
